Vector Quantization

Overview

Vector quantization (VQ) is a lossy compression technique that maps an input vector to the nearest element of a finite set of code vectors (also called prototypes or centroids). Each algorithm in smile.vq learns these prototypes from data through online, competitive learning: prototypes compete for each incoming signal, and the winner (or winners) are updated to better represent that signal.

SMILE’s VQ algorithms all implement the VectorQuantizer interface and support incremental learning via update(double[] x). That makes them suitable for streaming data, large datasets that do not fit in memory, or distributions that may shift over time.

The package contains five quantizer implementations:

ClassTopologyFixed size?Key strength
BIRCHCF-tree (hierarchical)NoFast, memory-bounded, handles very large datasets
NeuralGasNone (soft competition)YesRobust convergence, good coverage
GrowingNeuralGasGraph (dynamic)NoAdapts topology and size to data
NeuralMapGraph (dynamic, radius-gated)NoMemory-efficient, noise-resistant
SOM2-D rectangular latticeYesTopology-preserving, visual interpretation

Several playgrounds on this page use the Chameleon t4.8k dataset — a well-known 2-D spatial benchmark for data mining and clustering algorithms. It belongs to a suite of synthetic packages associated with the CHAMELEON clustering algorithm (George Karypis et al.) and consists of 8,000 points in a 2-dimensional space (8000 × 2).

The data contain seven distinct, highly irregular density clusters with varying shapes (curves, nested structures) and sizes, plus a high degree of background noise. That mix stresses how robustly an algorithm can filter outliers and recover cluster boundaries. Researchers often bench spatial and density-based models on t4.8k together with sibling sets t5.8k, t7.10k, and t8.8k.

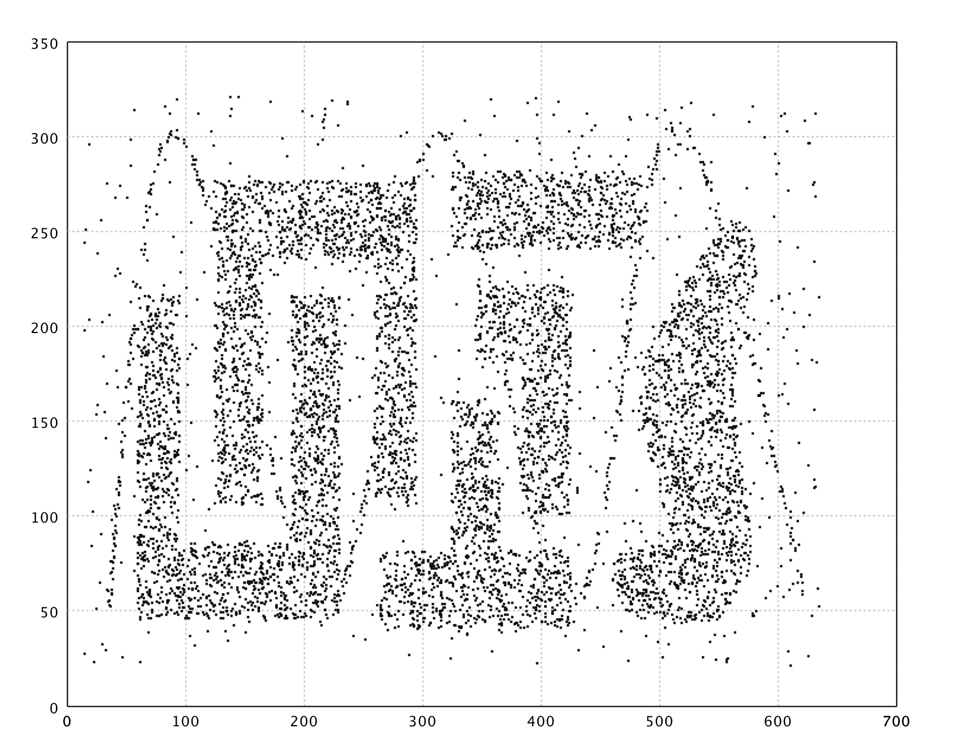

Chameleon t4.8k
Chameleon t4.8k

The VectorQuantizer Interface

Every algorithm implements VectorQuantizer, which extends Serializable:

Java
public interface VectorQuantizer extends Serializable {
    int OUTLIER = Integer.MAX_VALUE;
    void update(double[] x);
    double[] quantize(double[] x);
}
update(double[] x)
Presents a new observation. The model updates its internal prototype(s) with competitive learning. Call repeatedly over the training set (typically for multiple epochs in random order) to train.
quantize(double[] x)
Returns the weight vector of the nearest prototype. For Neural Gas, GNG, NeuralMap, and SOM this is an internal reference — do not mutate it. Clone first if you need a writable copy. BIRCH returns a freshly computed centroid array and is safe to modify.
OUTLIER
Integer.MAX_VALUE, reserved as a label for outliers or noise in higher-level clustering that builds on VQ. The VQ algorithms themselves do not use it internally.

All implementations are serializable, so a trained model can be saved and restored with standard Java object streams.

BIRCH — CF-Tree Quantizer

BIRCH (Balanced Iterative Reducing and Clustering using Hierarchies) builds a CF-tree — a height-balanced tree of Clustering Features (CF). Each CF is a compact statistical summary (N, LS, SS): the point count, linear sum, and square sum. From these three statistics the centroid and radius of a sub-cluster can be computed exactly and cheaply.

When a new point arrives, it is absorbed into the closest leaf CF if the resulting radius stays within the threshold T; otherwise a new CF is created. Leaves that exceed capacity L are split; internal nodes that exceed branching factor B are likewise split. quantize descends the tree to the nearest leaf CF and returns its centroid.

Construction

d
Dimensionality of the data.
B
Maximum children per internal node (typical 5–50; ≥ 2).
L
Maximum CFs per leaf node (typical 5–50; ≥ 2).
T
Radius threshold for absorbing a point into an existing CF (must be > 0). Smaller T yields finer sub-clusters; larger T yields coarser ones.

The constructor is BIRCH(int d, int B, int L, double T). T is the most important parameter — calibrate it from pairwise distances so it matches expected intra-cluster spread.

Usage

import smile.datasets.GaussianMixture;
import smile.math.MathEx;
import smile.vq.BIRCH;

MathEx.setSeed(19650218);
double[][] x = GaussianMixture.generate().x();

BIRCH birch = new BIRCH(x[0].length, 5, 5, 1.0);
for (double[] xi : x) {
    birch.update(xi);
}

double[] prototype = birch.quantize(x[0]);
double[][] centroids = birch.centroids();
System.out.println(centroids.length);
System.out.println(prototype.length);

(leaf centroid count)
(dimensionality)

centroids() returns the centroid of every CF at the leaf level. Feed these into hierarchical clustering (e.g. HierarchicalClustering) for phase 2 of the original BIRCH pipeline.

Key properties: single-pass construction, memory-bounded tree depth controlled by T/B/L, and O(log n) insertions. BIRCH’s quantize returns a new array computed from CF statistics, so it is safe to modify.

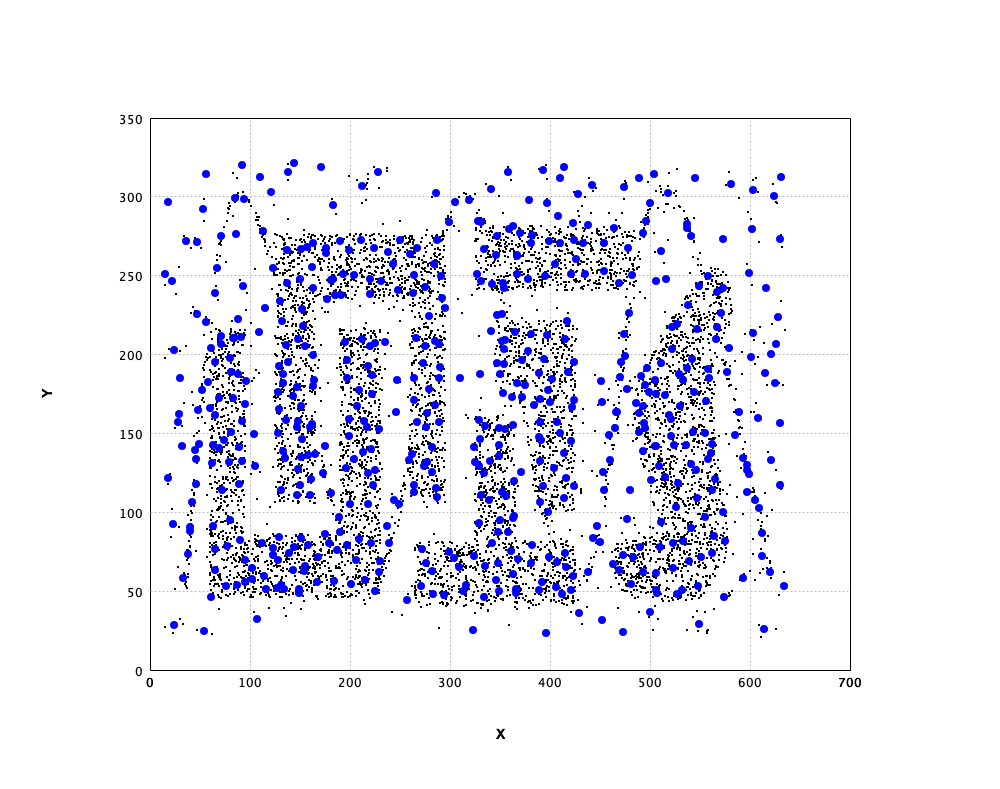

BIRCH
BIRCH

Neural Gas

Neural Gas (Martinetz & Schulten) uses soft competition: for every input x, all neurons are ranked by distance and updated, with adaptation strength decaying exponentially with rank. The closest neuron (rank 0) moves the most. A competitive Hebbian edge is also drawn between the best-matching unit (BMU) and the second-best; old edges can be pruned via network().

The adaptation rule for rank k at iteration t is Δwk = α(t)·exp(−k/θ(t))·(x − wk), where α(t) and θ(t) typically decay over time.

Construction

neurons
Initial weight vectors (at least 2); commonly drawn with CentroidClustering.seeds.
alpha
Learning-rate schedule α(t).
theta
Neighbourhood-width schedule θ(t).
lifetime
Edge lifetime: edges older than lifetime(t) steps are zeroed by network().

Constructor: NeuralGas(double[][] neurons, TimeFunction alpha, TimeFunction theta, TimeFunction lifetime). TimeFunction lives in smile.util.function; common schedules are TimeFunction.constant(v) and TimeFunction.exp(v0, T) (v0 · exp(−t / T)).

Usage

import smile.clustering.CentroidClustering;
import smile.datasets.GaussianMixture;
import smile.math.MathEx;
import smile.util.function.TimeFunction;
import smile.vq.NeuralGas;

MathEx.setSeed(19650218);
double[][] x = GaussianMixture.generate().x();
int epochs = 10;
int T = x.length * epochs;

NeuralGas gas = new NeuralGas(
    CentroidClustering.seeds(x, 20),
    TimeFunction.exp(0.3, T / 2.0),
    TimeFunction.exp(5, T / 8.0),
    TimeFunction.constant(x.length * 2));

for (int epoch = 0; epoch < epochs; epoch++) {
    for (int j : MathEx.permutate(x.length)) {
        gas.update(x[j]);
    }
}

System.out.println(gas.neurons().length);
System.out.println(gas.network().getVertexCount());

20
20

neurons() returns weight vectors in the original constructor index order. network() returns an AdjacencyMatrix of competitive Hebbian edges after pruning expired ones. Neural Gas has a fixed prototype count, smooth soft-competition convergence, and needs alpha/theta to decay near zero by the end of training.

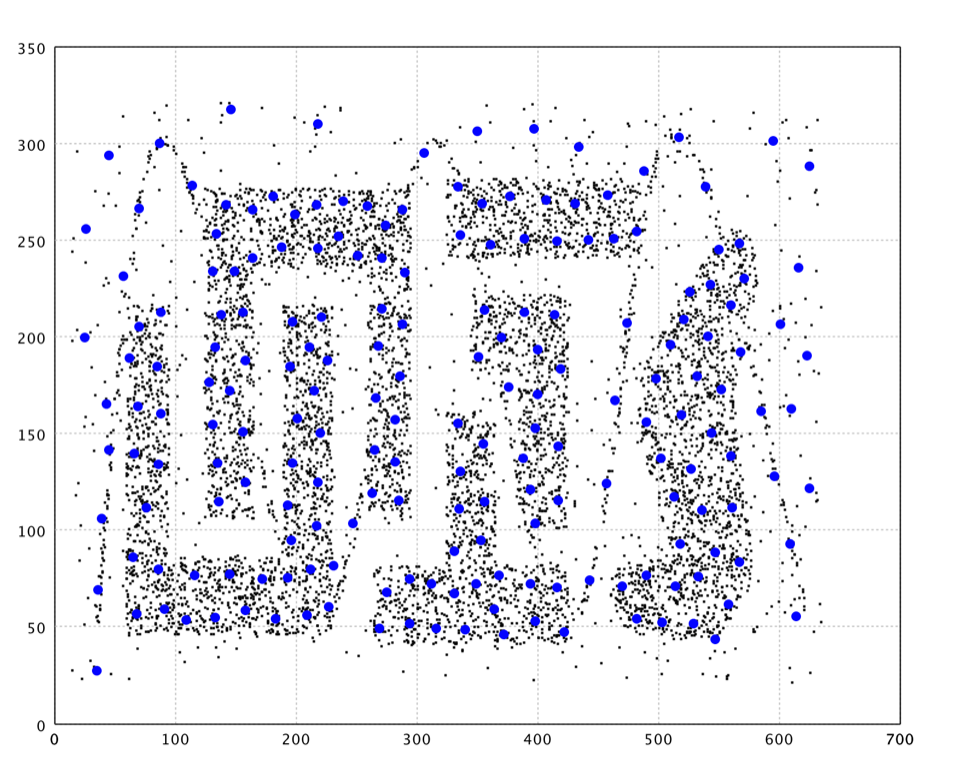

Neural Gas
Neural Gas

Growing Neural Gas

Growing Neural Gas (GNG, Fritzke) extends Neural Gas with dynamic neuron insertion and removal. It uses hard competition (BMU and second-best only), competitive Hebbian edges, age-based edge pruning, local error accumulation, and periodic insertion every lambda signals halfway between the highest-error neuron and its worst neighbor.

Construction

Two constructors: GrowingNeuralGas(int d) with defaults, or the full form GrowingNeuralGas(int d, double epsBest, double epsNeighbor, int edgeLifetime, int lambda, double alpha, double beta).

ParameterDefaultMeaning
d—Dimensionality
epsBest0.2Learning rate for BMU
epsNeighbor0.006Learning rate for BMU neighbors
edgeLifetime50Maximum edge age before pruning
lambda100Neuron insertion interval (signals)
alpha0.5Error reduction for q and f after insertion
beta0.995Global error decay after every signal

The first two update calls only bootstrap the first two neurons; learning begins from the third call onward.

Usage

import smile.datasets.GaussianMixture;
import smile.math.MathEx;
import smile.vq.GrowingNeuralGas;

MathEx.setSeed(19650218);
double[][] x = GaussianMixture.generate().x();
GrowingNeuralGas model = new GrowingNeuralGas(x[0].length);

for (int epoch = 0; epoch < 5; epoch++) {
    for (int j : MathEx.permutate(x.length)) {
        model.update(x[j]);
    }
}

var neurons = model.neurons();
System.out.println(neurons.length);
System.out.println(neurons[0].w.length);
System.out.println(model.quantize(x[0]).length);

(neuron count grows)
(dimensionality)
(dimensionality)

neurons() returns Neuron[] from smile.vq.hebb. Each neuron exposes w (prototype), counter (accumulated local error), and edges (topological neighbors). Disconnected components in the edge graph correspond to separate clusters. You do not need to choose the prototype count in advance.

GoalAdjustment
Fewer, coarser prototypesIncrease lambda, decrease edgeLifetime
More, finer prototypesDecrease lambda, increase edgeLifetime
Faster convergenceIncrease epsBest and epsNeighbor
Smoother topologyDecrease epsBest, increase edgeLifetime
Drifting distributionsSmaller beta, smaller edgeLifetime

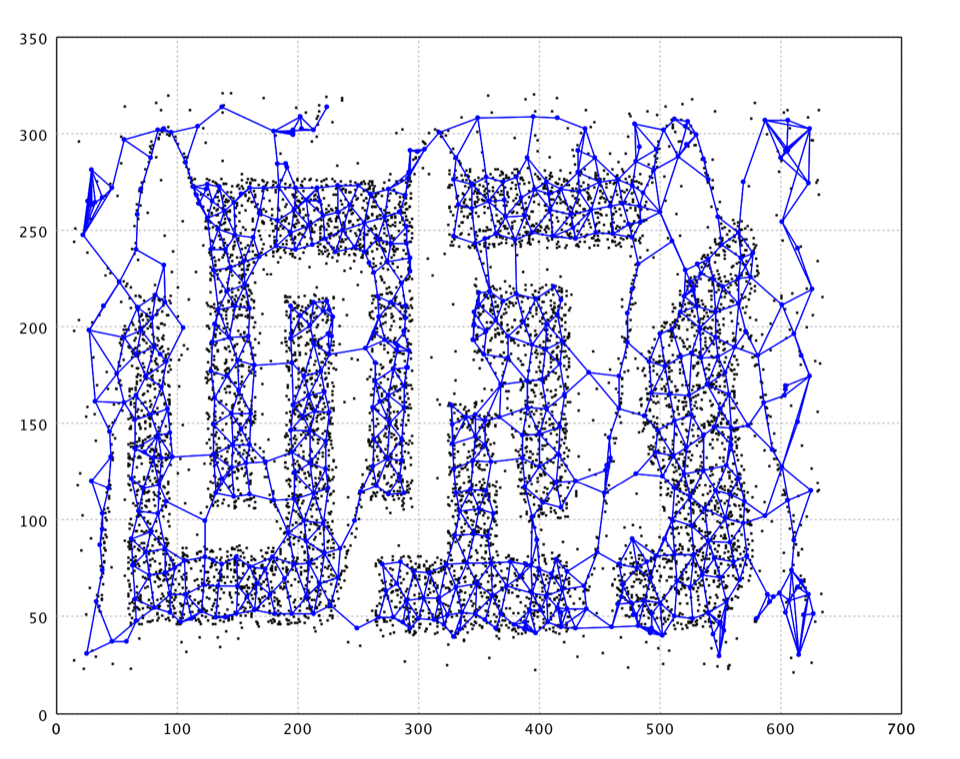

Growing Neural Gas
Growing Neural Gas

NeuralMap

NeuralMap combines ideas from GNG and BIRCH. Like GNG it uses competitive Hebbian learning and edge aging, but neuron creation is gated by a distance threshold r rather than a fixed insertion interval. Isolated far-outlier signals create their own neuron, which quickly becomes stale and is removed by clear.

d
Dimensionality.
r
Distance threshold for neuron activation.
epsBest
Learning rate for the nearest neuron.
epsNeighbor
Learning rate for topological neighbors.
edgeLifetime
Maximum edge age before pruning.
beta
Global freshness decay per step (0 < beta ≤ 1).

Constructor: NeuralMap(int d, double r, double epsBest, double epsNeighbor, int edgeLifetime, double beta).

import smile.datasets.GaussianMixture;
import smile.math.MathEx;
import smile.vq.NeuralMap;

MathEx.setSeed(19650218);
double[][] x = GaussianMixture.generate().x();
NeuralMap model = new NeuralMap(x[0].length, 1.5, 0.01, 0.002, 50, 0.995);

for (int epoch = 0; epoch < 5; epoch++) {
    for (int j : MathEx.permutate(x.length)) {
        model.update(x[j]);
    }
    model.clear(1E-7);
}

System.out.println(model.neurons().length);
System.out.println(model.quantize(x[0]).length);

(compact neuron count)
(dimensionality)

clear(double eps) removes neurons whose freshness counter < eps and whose edge list is empty, and prunes stale edges on surviving neurons. Call it between epochs to keep the model compact. eps must be non-negative or an IllegalArgumentException is thrown. Network size is bounded by how many distinct r-balls cover the data.

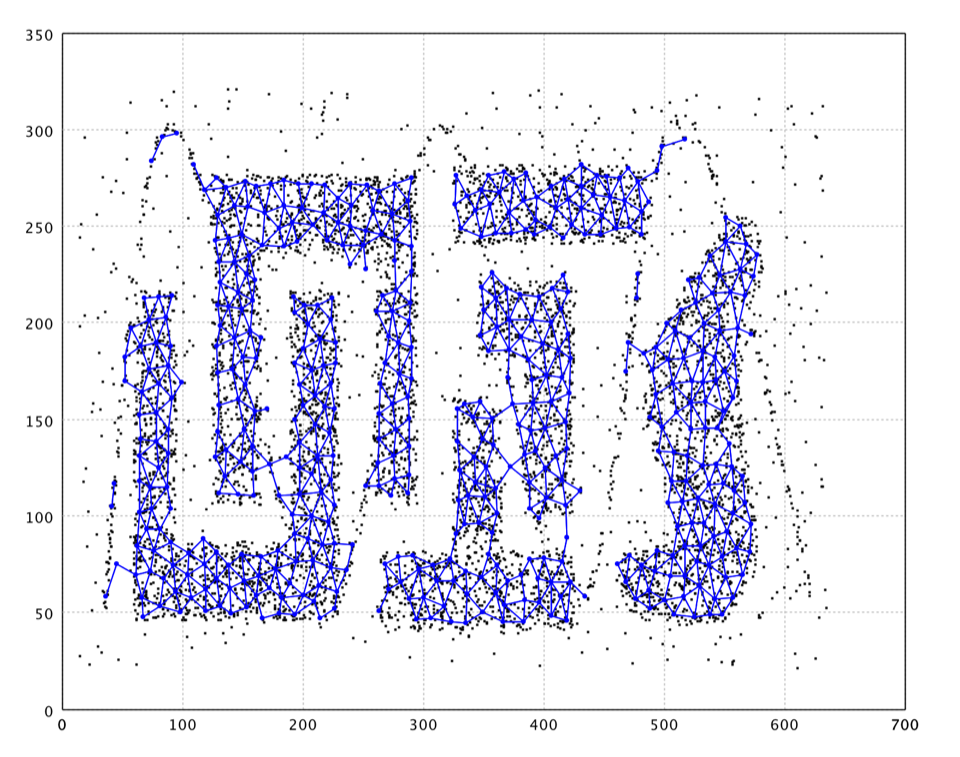

NeuralMap
NeuralMap

Self-Organizing Map (SOM)

The Self-Organizing Map (Kohonen) organizes a fixed set of neurons on a 2-D rectangular lattice. Each neuron has a grid position (i, j) and a weight vector in input space. Training finds the BMU, then updates all neurons toward x with magnitude α(t)·θ(di, dj, t). As α and the neighborhood shrink, the map first organizes globally and then fine-tunes locally — a topology-preserving projection onto the 2-D lattice.

Constructor: SOM(double[][][] neurons, TimeFunction alpha, Neighborhood theta). All rows must share the same column count; all weight vectors must share dimensionality d.

Prefer SOM.lattice(nrow, ncol, samples) for initialization: it seeds with CentroidClustering.seeds, embeds those seeds with MDS, and orders the grid so row/column positions respect the embedding. That preserves global structure from the start.

import smile.io.Read;
import smile.math.MathEx;
import smile.plot.swing.Hexmap;
import smile.plot.swing.Palette;
import smile.util.function.TimeFunction;
import smile.vq.Neighborhood;
import smile.vq.SOM;
import org.apache.commons.csv.CSVFormat;

var x = Read.csv("data/clustering/chameleon/t4.8k.txt",
    CSVFormat.DEFAULT.withDelimiter(' ')).toArray();
int epochs = 20;
var lattice = SOM.lattice(20, 20, x);
var som = new SOM(lattice,
    TimeFunction.constant(0.1),
    Neighborhood.Gaussian(1.0, x.length * epochs / 4.0));

for (int e = 0; e < epochs; e++) {
    for (int i : MathEx.permutate(x.length)) {
        som.update(x[i]);
    }
}

Hexmap.of(som.umatrix(), Palette.jet(256)).canvas().window();

(opens plot: U-matrix hexmap)

neurons() returns the learned [nrow][ncol][d] lattice (internal references — do not modify). umatrix() computes the Unified Distance Matrix: for each neuron, the maximum Euclidean distance to its orthogonal (4-connected) grid neighbors. Large values mark cluster boundaries; low values mark dense regions. The grid is not toroidal — corner and edge cells only consider existing neighbors.

Chameleon t4.8k
Chameleon t4.8k

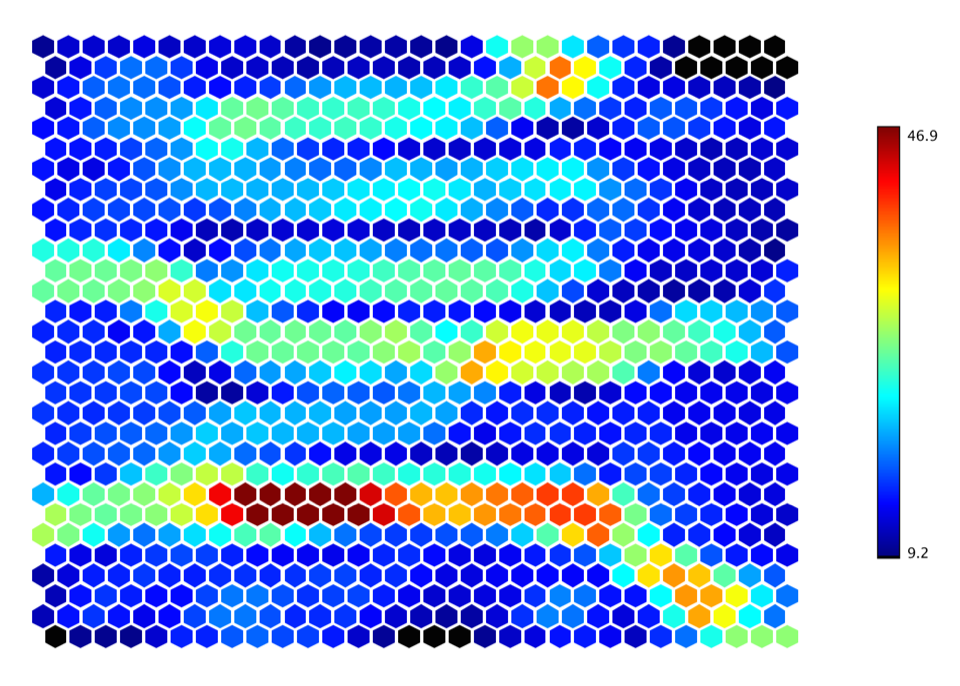

SOM U-matrix (hexmap)
SOM U-matrix (hexmap)

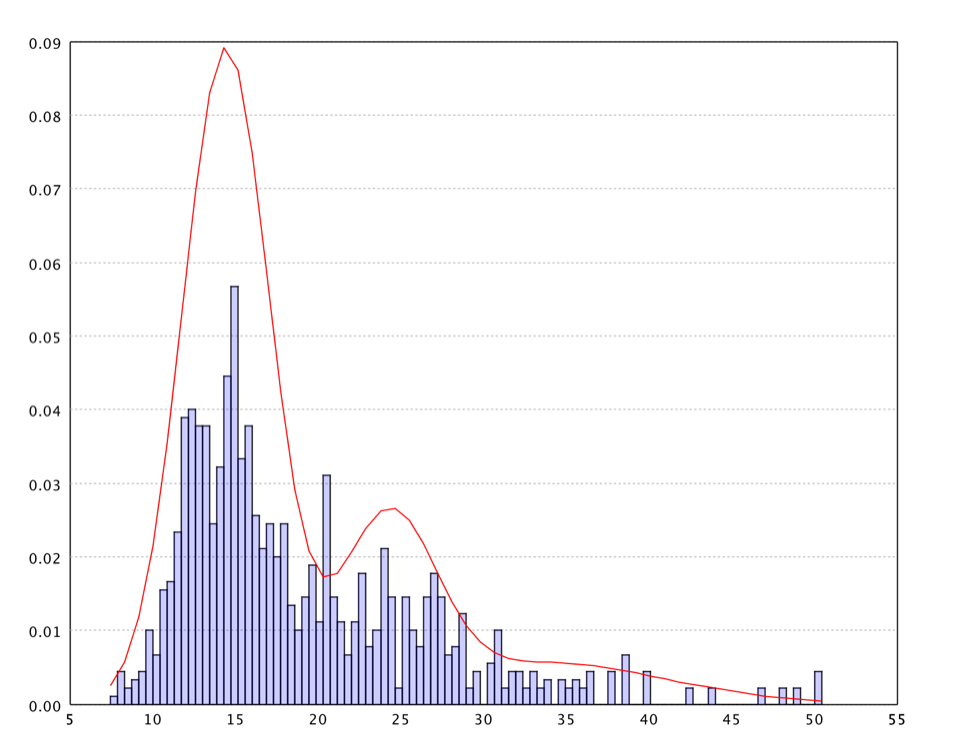

SOM U-matrix (histogram)
SOM U-matrix (histogram)

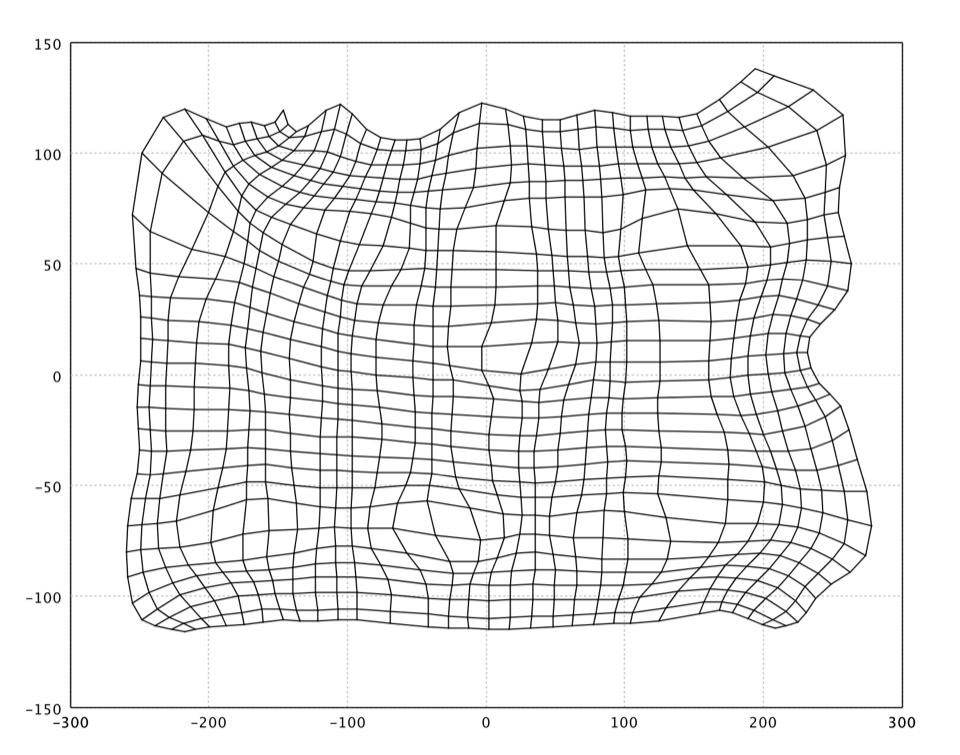

SOM Sammon mapping
SOM Sammon mapping

Built-in neighborhoods: Neighborhood.bubble(radius) (flat Euclidean disk) and Neighborhood.Gaussian(sigma, T) (recommended; width decays from sigma to ~0 over T iterations). See Neighborhood Functions below.

The smile.vq.hebb Package

The sub-package smile.vq.hebb provides the graph primitives used by Growing Neural Gas and NeuralMap.

Neuron

w
Weight / prototype vector (final double[]).
edges
Topological neighbors; undirected edges stored bidirectionally.
distance
Last computed distance to an input (transient — not serialized).
counter
Local counter (error accumulation in GNG, freshness in NeuralMap).

Key methods: update(x, eps) moves w += eps·(x − w); distance(x) sets this.distance; addEdge / removeEdge / setEdgeAge maintain the undirected graph; age() increments ages of all emanating edges; compareTo orders by distance for HeapSelect.

Edge

An Edge holds neighbor (the connected Neuron) and age (steps since last refresh). Edges are stored bidirectionally: if A has an edge to B, B also has an edge to A. Algorithms maintain that invariant by calling addEdge/removeEdge on both endpoints.

Neighborhood Functions

Neighborhood is a @FunctionalInterface with double of(int i, int j, int t), where i/j are signed row/column displacements from the BMU and t is the iteration count.

Bubble neighborhood

Neighborhood.bubble(int radius) returns 1.0 when the Euclidean lattice distance √(i² + j²) ≤ radius, else 0.0. The boundary is included. (For a Chebyshev square that excludes the boundary, use Neighborhood.square(width).)

Java
import smile.vq.Neighborhood;

Neighborhood bubble = Neighborhood.bubble(2);
System.out.println(bubble.of(0, 0, 0)); // 1.0 winner
System.out.println(bubble.of(0, 2, 0)); // 1.0 on boundary
System.out.println(bubble.of(2, 1, 0)); // 0.0 outside

1.0
1.0
0.0

Gaussian neighborhood

Neighborhood.Gaussian(double sigma, double T) returns exp(−0.5·(i²+j²)/s²) where s = sigma·exp(−t/T). The neighbourhood width shrinks exponentially from sigma to near zero over T iterations. The winner always evaluates to 1.0.

Java
import smile.vq.Neighborhood;

Neighborhood gauss = Neighborhood.Gaussian(2.0, 8000.0);
System.out.println(gauss.of(0, 0, 0));    // 1.0
System.out.println(gauss.of(1, 0, 0));    // ≈ 0.882
System.out.println(gauss.of(1, 0, 4000)); // narrower

1.0
0.8824969...
(smaller)

Because Neighborhood is a functional interface, you can supply any lambda for custom decay schedules. Also available: triangle and MexicanHat.

Algorithm Comparison and Selection Guide

Quantization error on USPS handwritten digits (256-dimensional, ~7,000 training, ~2,000 test) from the integration test suite with seed 19650218. Lower is better; errors are mean Euclidean distances.

AlgorithmConfigTrain errorTest error
K-Means (baseline)k=4005.8296.631
Neural Gas400 neurons, 20 epochs5.6996.531
Growing Neural Gasdefault params, 10 epochs5.5936.432
NeuralMapr=8, 5 epochs + clear6.0236.939
SOM20×20 grid, 20 epochs—6.582
BIRCHB=5, L=5, T=65.9027.350

Decision guide

Use BIRCH for very large datasets needing a single fast pass, memory-constrained CF-trees, or two-phase pipelines that cluster the resulting centroids — especially when you do not need a fixed prototype count.

Use Neural Gas when you know the prototype count, want smooth soft-competition convergence without lattice constraints, and can afford multi-epoch training (optionally using the Hebbian topology graph).

Use Growing Neural Gas when prototype count is unknown, cluster structure is complex, and you want the topology graph to emerge naturally.

Use NeuralMap for streaming data with outliers, radius-based noise rejection, and periodically pruned compact models (clear between epochs).

Use SOM when topology preservation and U-matrix visualization matter, with a fixed 2-D neuron budget and an ordered grid for downstream navigation or coloring.

Common Patterns and Tips

Multi-epoch training with random shuffling

All online VQ algorithms benefit from a different random order each epoch. MathEx.permutate(n) returns a random permutation of 0..n−1.

import smile.datasets.GaussianMixture;
import smile.math.MathEx;
import smile.vq.GrowingNeuralGas;

MathEx.setSeed(19650218);
double[][] x = GaussianMixture.generate().x();
GrowingNeuralGas model = new GrowingNeuralGas(x[0].length);

for (int epoch = 0; epoch < 5; epoch++) {
    for (int j : MathEx.permutate(x.length)) {
        model.update(x[j]);
    }
}
System.out.println(model.neurons().length);

(neuron count)

Computing mean quantization error

Java
double error = 0.0;
for (double[] xi : testData) {
    double[] proto = model.quantize(xi);
    error += MathEx.distance(xi, proto);
}
error /= testData.length;
System.out.printf("Mean quantization error = %.4f%n", error);

Do not modify the returned prototype

quantize and neurons() return internal references for Neural Gas, GNG, NeuralMap, and SOM. Mutating them corrupts the model. Always clone() first. BIRCH’s quantize is the exception — it returns a freshly computed centroid.

Java
// Dangerous — modifies the internal weight vector:
// double[] proto = gas.quantize(x);
// proto[0] = 0.0; // BUG

// Safe:
double[] proto = gas.quantize(x).clone();

Seeding prototypes intelligently

For Neural Gas and SOM, prefer k-means++ seeds (CentroidClustering.seeds) or the MDS-based SOM.lattice helper over random uniform initialization.

Java
// Neural Gas: seed with representative points
double[][] seeds = CentroidClustering.seeds(trainingData, 200);
NeuralGas gas = new NeuralGas(seeds, alpha, theta, lifetime);

// SOM: MDS-ordered lattice
double[][][] lattice = SOM.lattice(10, 20, trainingData);
SOM som = new SOM(lattice, alpha, Neighborhood.Gaussian(1.0, T));

Learning-rate schedules

A common rule of thumb for exponential schedules over N = n · epochs update steps:

Java
int N = trainingData.length * numEpochs;
TimeFunction alpha = TimeFunction.exp(0.3, N / 2.0);
TimeFunction theta = TimeFunction.exp(30.0, N / 8.0);

Both should reach near-zero by the end of training. Too large a final value leaves the map restless; too small wastes early epochs.

For GNG / NeuralMap, print neurons().length between epochs (and call clear for NeuralMap). If the count grows without bound, decrease edgeLifetime or (for GNG) increase pruning pressure via lambda. For BIRCH radius calibration, estimate mean pairwise distance on a sample and set T to roughly 10–20% of that value.
